Air Filter Test Machine

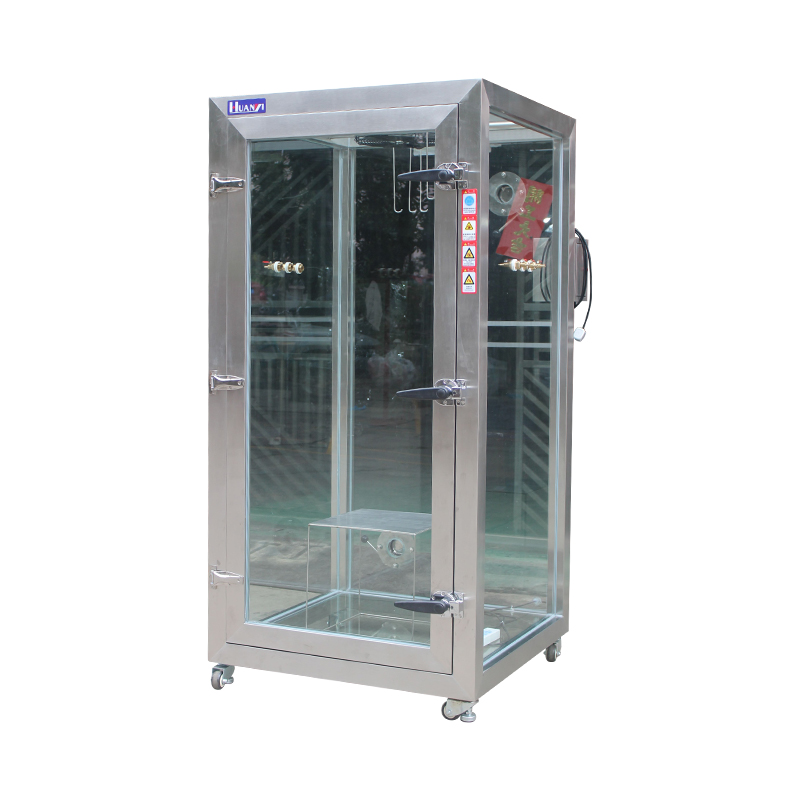

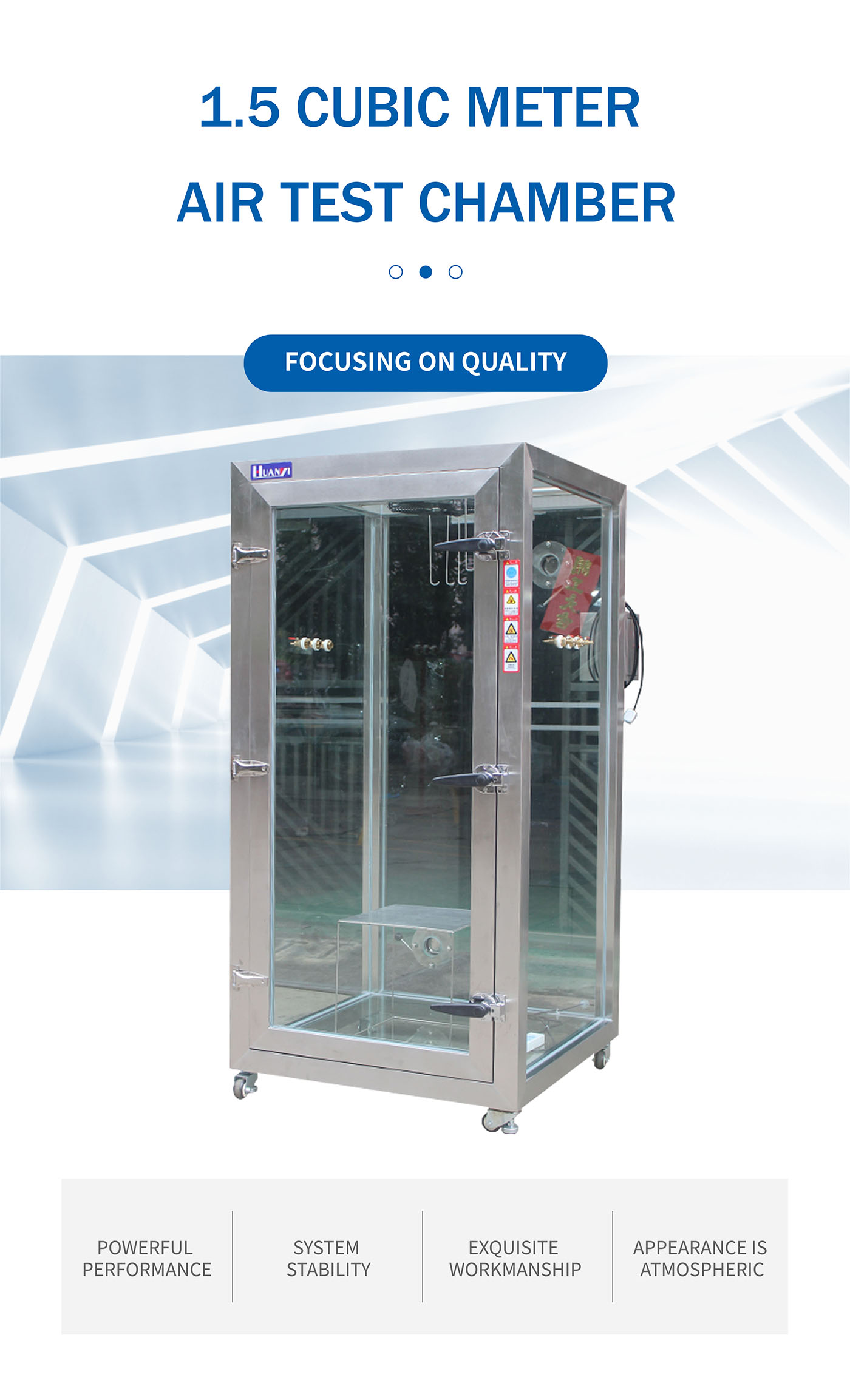

1.5 cubic meter air test chamber

The 1.5 cubic air purification test chamber can be used for air purification performance tests of active purifiers and passive purification materials. This product can provide a test environment that meets standard requirements with good airtightness and less adsorption and release of pollutants on the surface of the chamber.

product details

product description

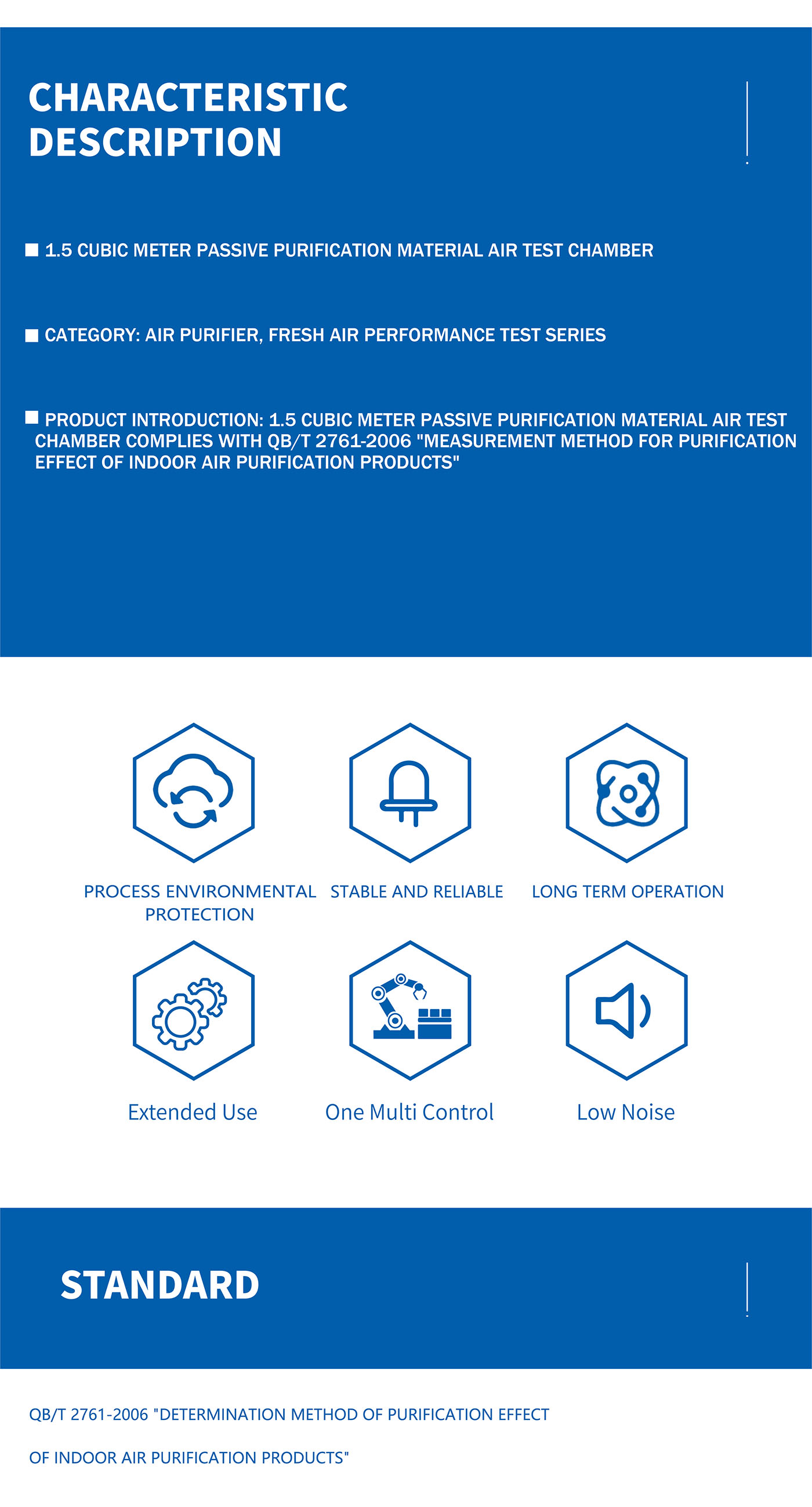

Meet the standard

QB/T 2761-2006 "Determination method of purification effect of indoor air purification products"
GB/T 18883-2002 Air Indoor Quality Standards

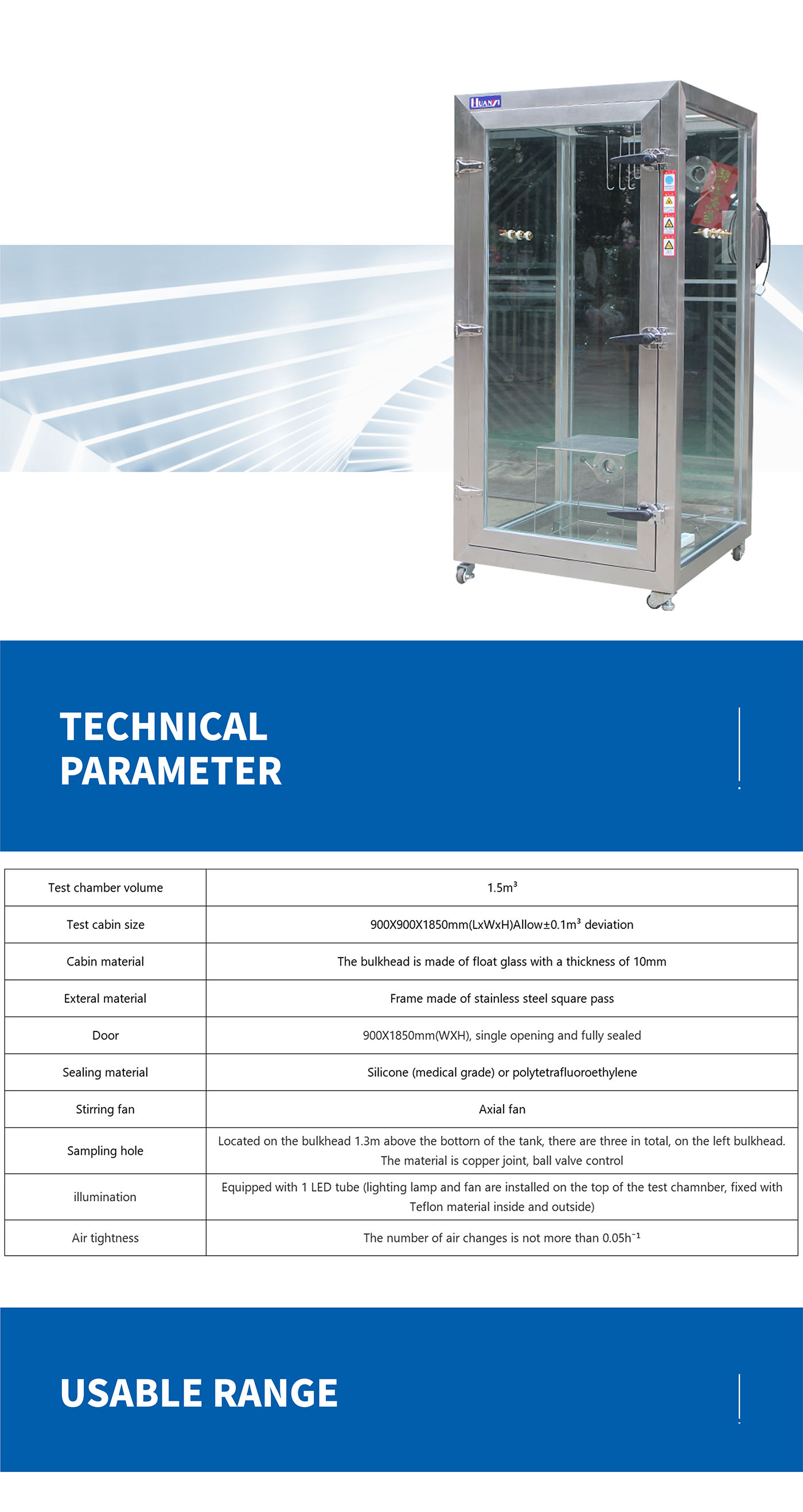

Technical parameters

Test chamber volume	1.5m³
Test cabin size	900X900X1850mm(LxWxH)Allow±0.1m³ deviation
Cabin material	The bulkhead is made of float glass with a thickness of 10mm
Exteral material	Frame made of stainless steel square pass
Door	900X1850mm(WXH), single opening and fully sealed
Sealing material	Silicone (medical grade) or polytetrafluoroethylene
Stirring fan	Axial fan
Sampling hole	Located on the bulkhead 1.3m above the bottorn of the tank, there are three in total, on the left bulkhead. The material is copper joint, ball valve control
illumination	Equipped with 1 LED tube (lighting lamp and fan are installed on the top of the test chamnber, fixed with Teflon material inside and outside)
Air tightness	The number of air changes is not more than 0.05h⁻¹
