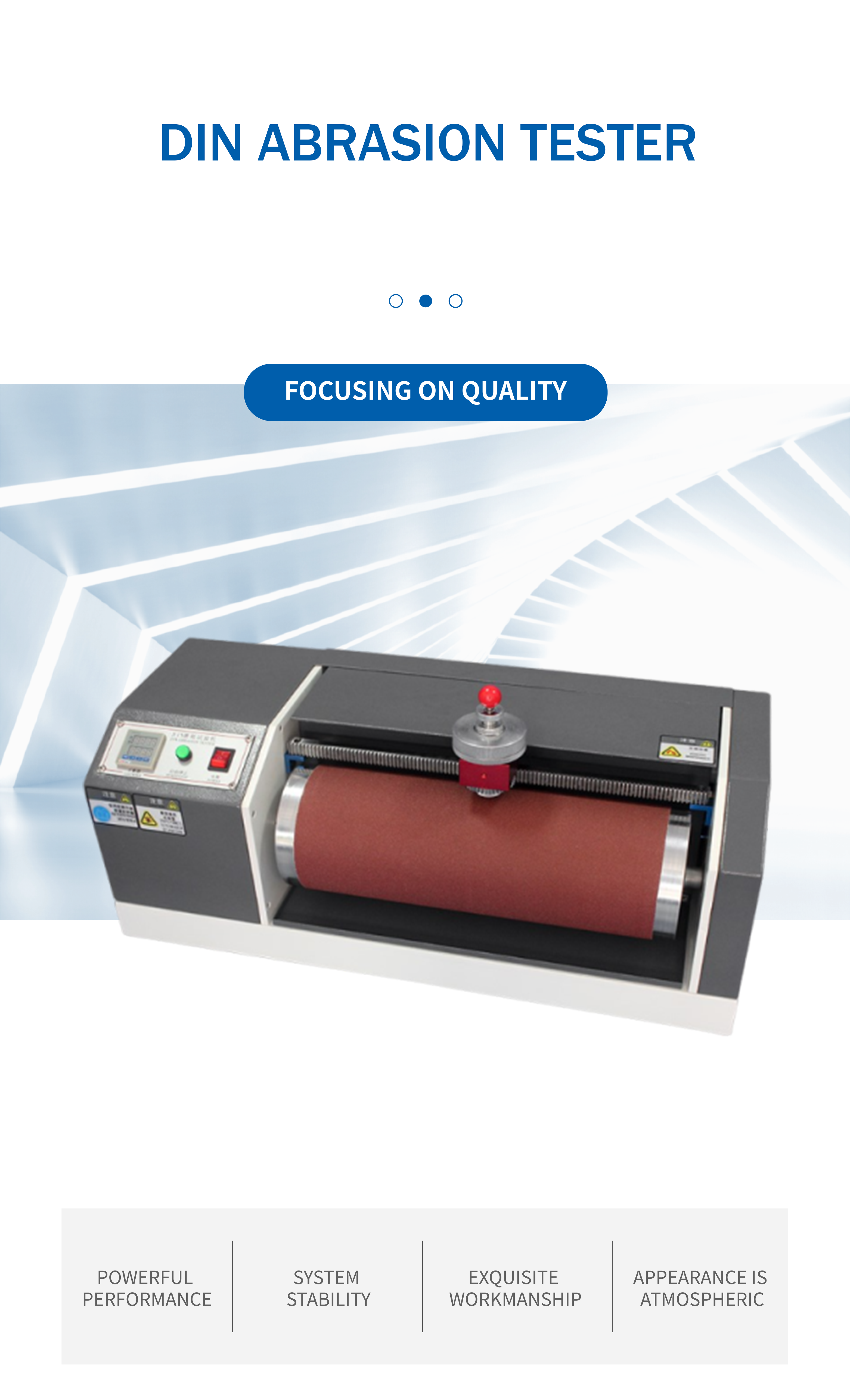

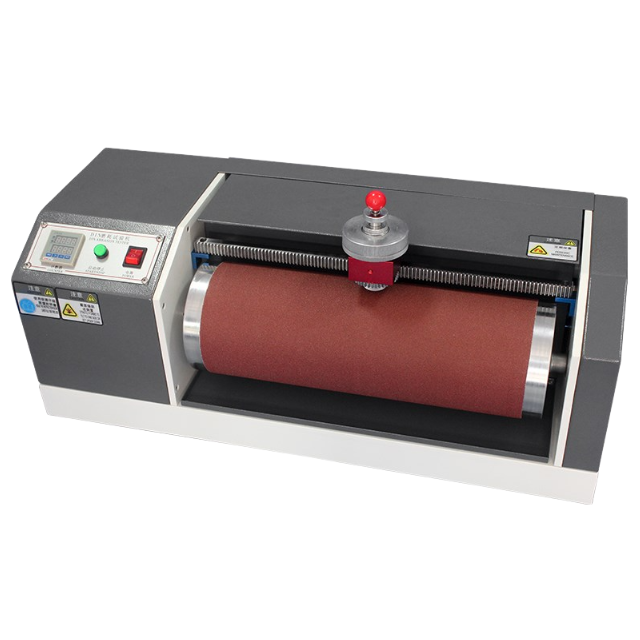

DIN Abrasion Tester
Standard
The equipment is certified by the following standards:
DIN-53516: German Elastomer Material Wear Test Specification
ISO/DIS-4649: Draft of the International Organization for Standardization's Abrasion Test Method
GB-9867: Technical Standard for China's Rubber Rotary Abrasion Tester
The test report shall record information such as initial quality, quality after abrasion, test temperature and sandpaper specifications, and the data repeatability deviation shall not exceed 5%.
DIN-53516: German Elastomer Material Wear Test Specification
ISO/DIS-4649: Draft of the International Organization for Standardization's Abrasion Test Method
GB-9867: Technical Standard for China's Rubber Rotary Abrasion Tester
The test report shall record information such as initial quality, quality after abrasion, test temperature and sandpaper specifications, and the data repeatability deviation shall not exceed 5%.
Application
Mainly serves the following industries for material testing:
Rubber products: wear life evaluation of tire tread rubber, seals, and shock absorbers
Footwear manufacturing: wear grade determination of sole materials
Industrial materials: wear resistance verification of conveyor belts, transmission belts, and elastomer coatings
Scientific research testing: comparative analysis of wear resistance coefficients of new formula materials
Rubber products: wear life evaluation of tire tread rubber, seals, and shock absorbers
Footwear manufacturing: wear grade determination of sole materials
Industrial materials: wear resistance verification of conveyor belts, transmission belts, and elastomer coatings
Scientific research testing: comparative analysis of wear resistance coefficients of new formula materials

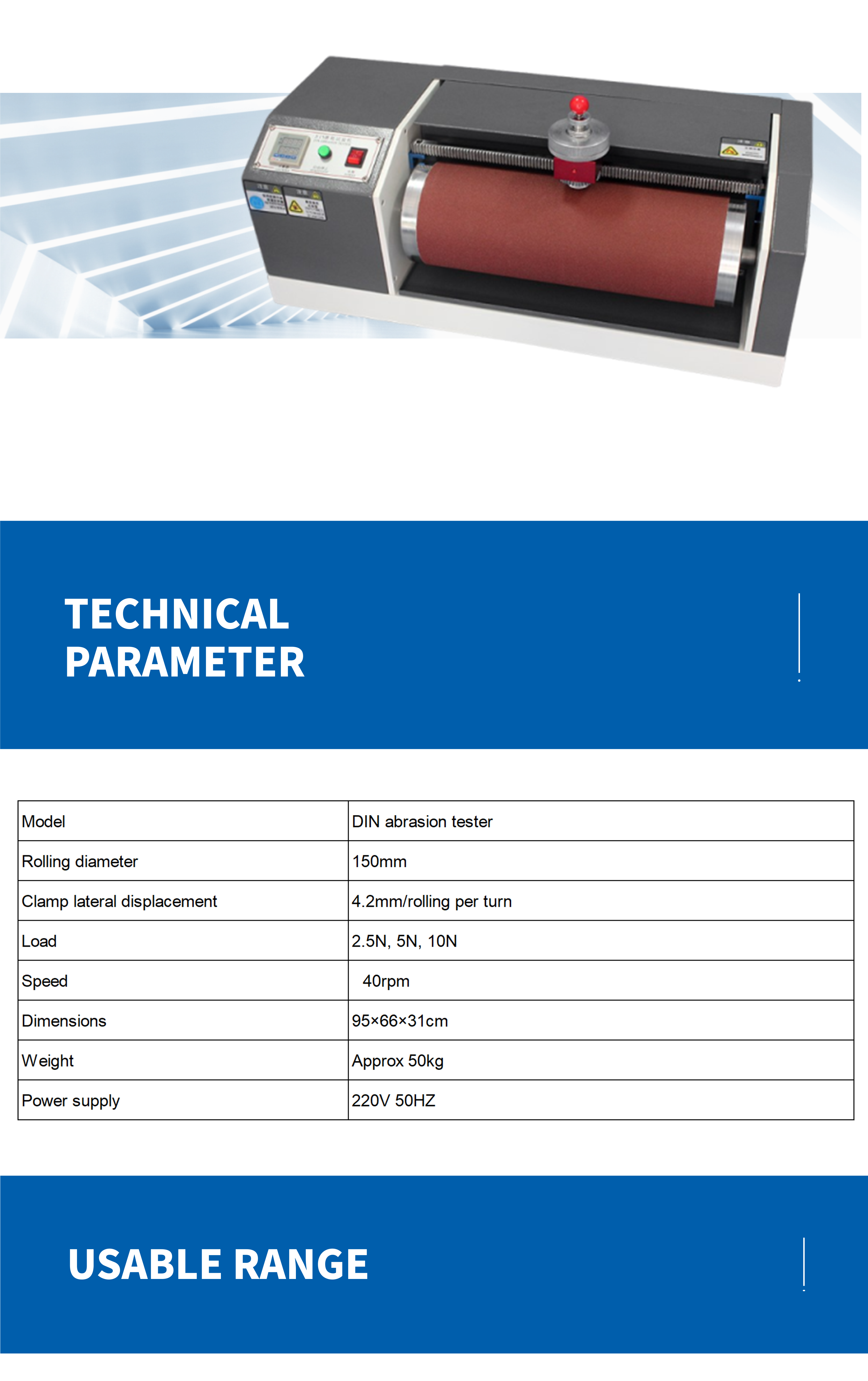

Technical parameters
| Model | DIN abrasion tester |
| Rolling diameter | 150mm |

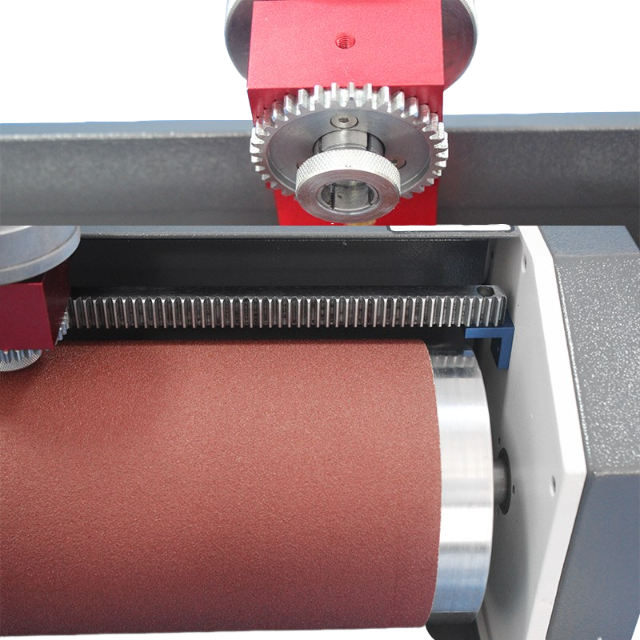

| Clamp lateral displacement | 4.2mm/rolling per turn |
| Load | 2.5N, 5N, 10N |
| Speed | 40rpm |
| Dimensions | 95×66×31cm |
| Weight | Approx 50kg |
| Power supply | 220V 50HZ |
