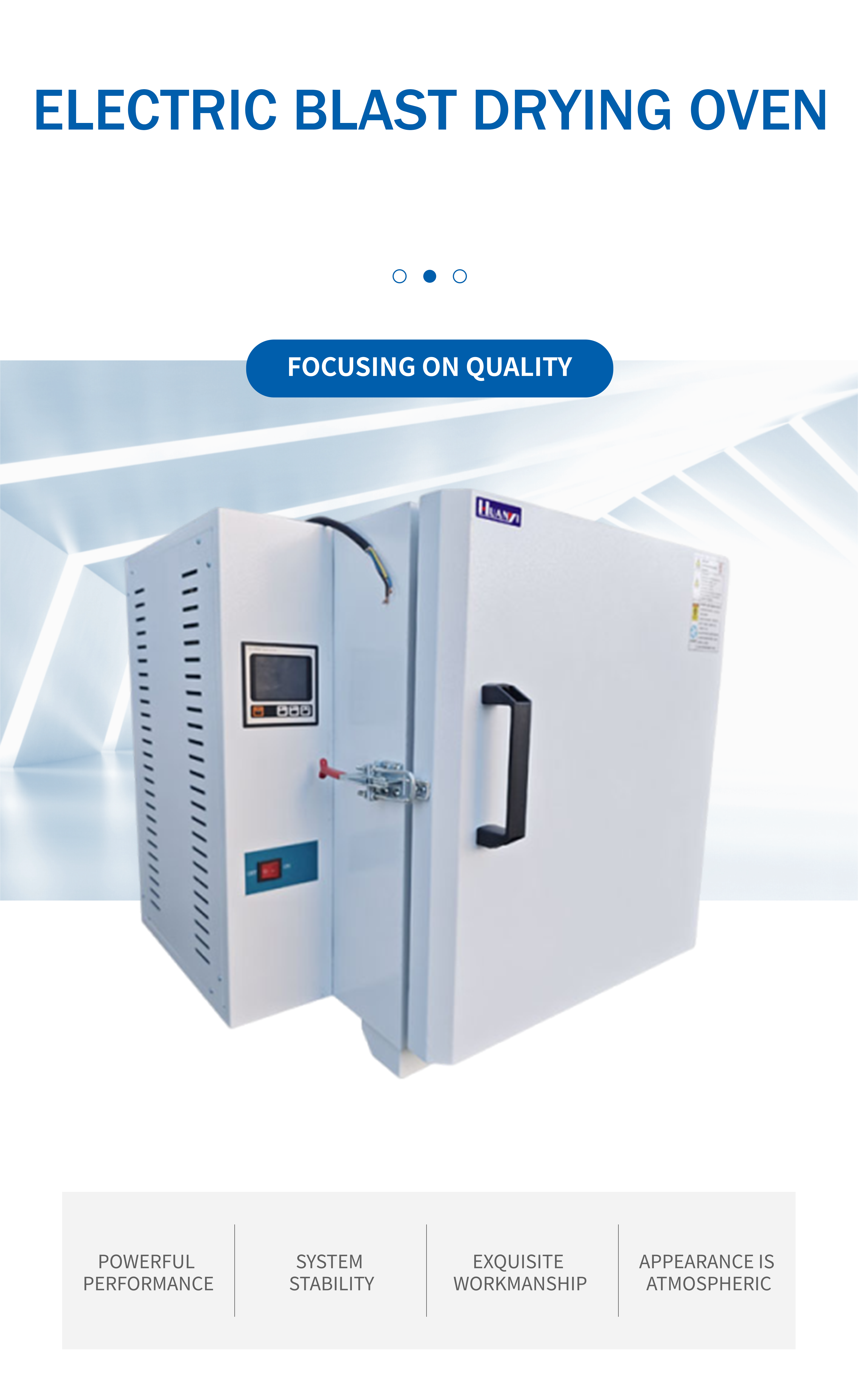

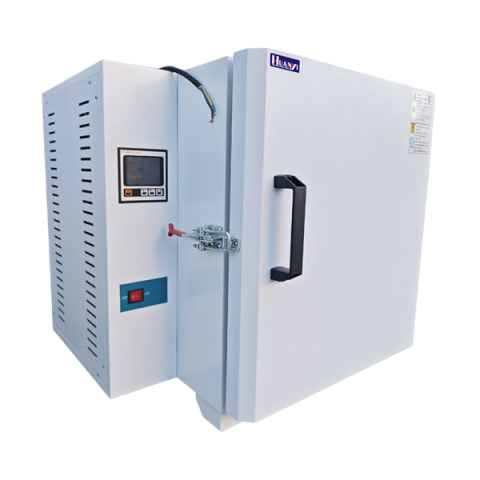

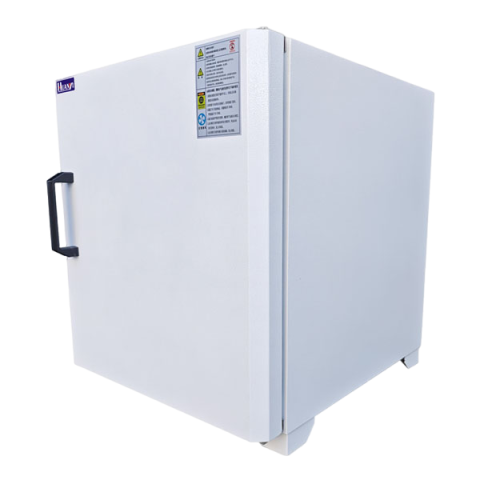

Electric blast drying oven
Features
1. The whole machine is designed with electrostatic, and the outer box is made of cold-rolled steel plate electrostatic spray box, which has strong corrosion resistance.
2. The control panel uses PID LCD screen to display temperature, time and other parameters
3. The inner tank is made of mirror stainless steel, with arc R angle, which is easy to clean.
4. The partition is a punching tray, which is flat, can bear a load of up to 40KG, and the layer height can be adjusted at will.
5. There is a 5-7CM insulation layer between the box and the studio, which has good insulation function.
2. The control panel uses PID LCD screen to display temperature, time and other parameters
3. The inner tank is made of mirror stainless steel, with arc R angle, which is easy to clean.
4. The partition is a punching tray, which is flat, can bear a load of up to 40KG, and the layer height can be adjusted at will.
5. There is a 5-7CM insulation layer between the box and the studio, which has good insulation function.
Application
It is widely used in industrial and mining enterprises, laboratories, scientific research institutions, etc. for drying, baking, melting wax and sterilization.

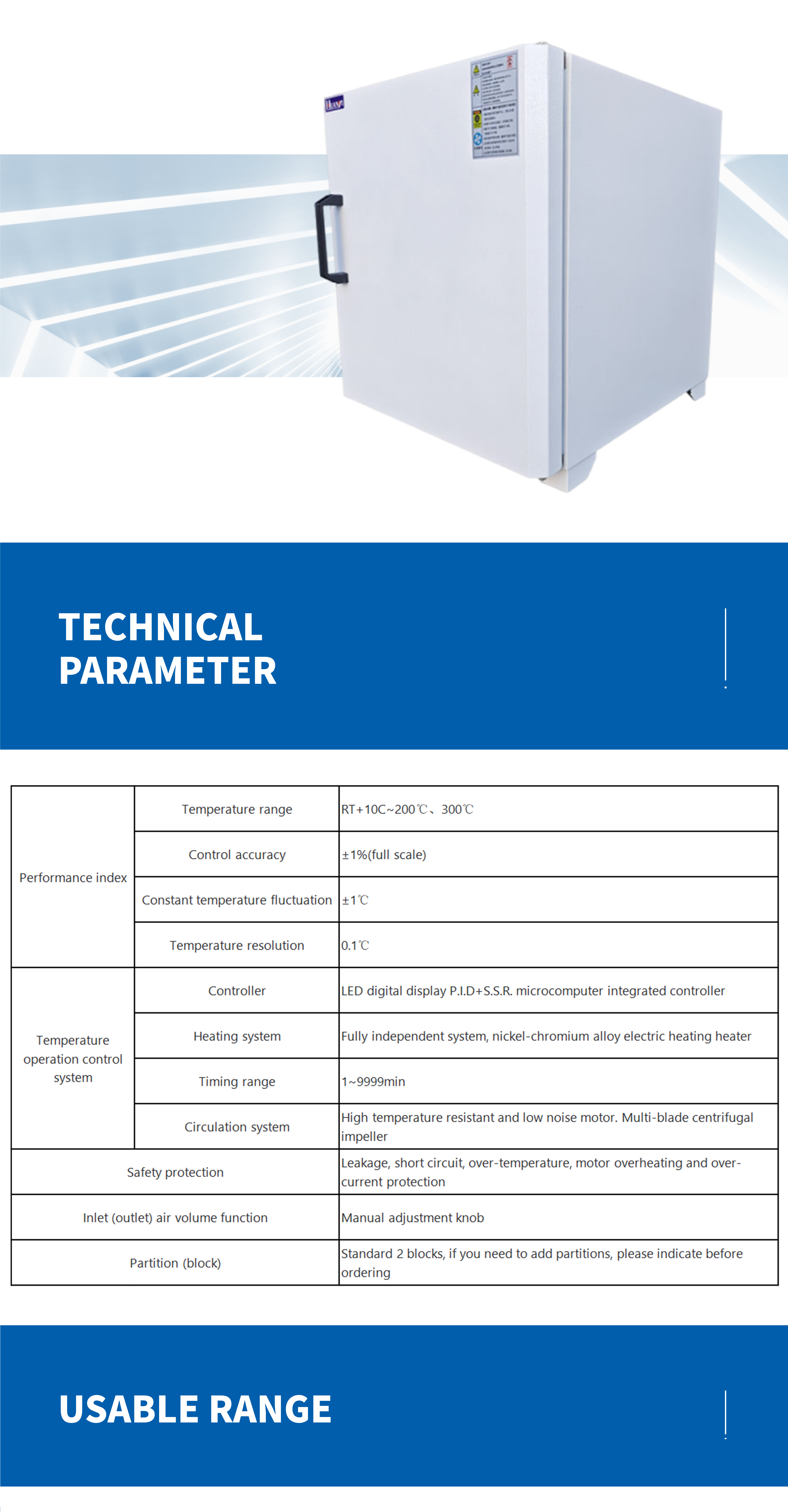

Technical parameters
| Performance index | Temperature range | RT+10C~200℃、300℃ |
| Control accuracy | ±1%(full scale) | |
| Constant temperature fluctuation | ±1℃ | |
| Temperature resolution | 0.1℃ | |
| Temperature operation control system | Controller | LED digital display P.I.D+S.S.R. microcomputer integrated controller |
| Heating system | Fully independent system, nickel-chromium alloy electric heating heater | |
| Timing range | 1~9999min | |
| Circulation system | High temperature resistant and low noise motor. Multi-blade centrifugal impeller | |
| Safety protection | Leakage, short circuit, over-temperature, motor overheating and over-current protection | |
| Inlet (outlet) air volume function | Manual adjustment knob | |
| Partition (block) | Standard 2 blocks, if you need to add partitions, please indicate before ordering | |
