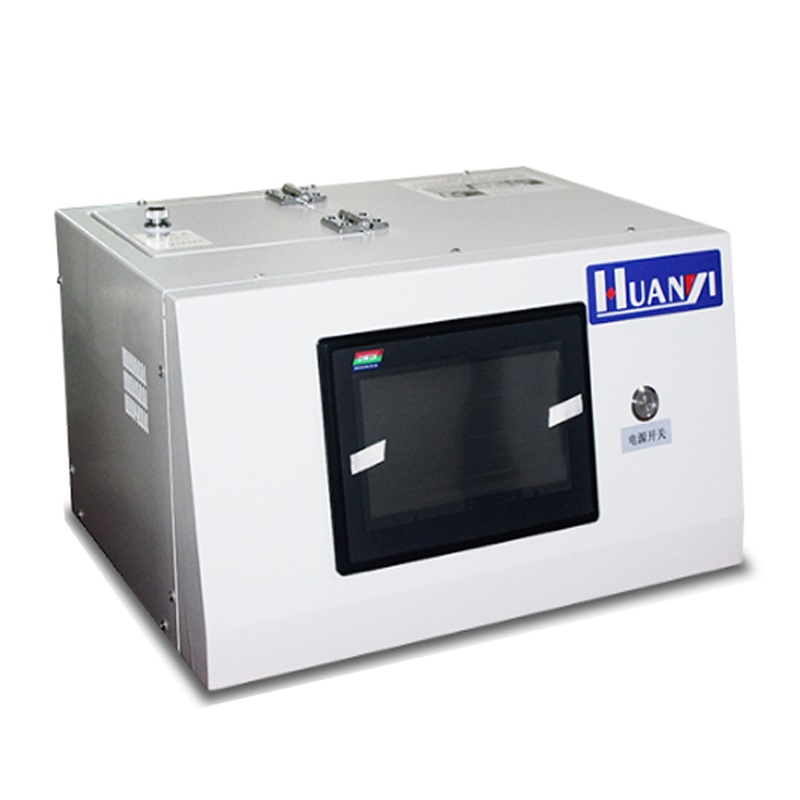

Formaldehyde Generator
Working principle
The formaldehyde generator adopts a positive pressure sealing system to prevent the leakage of the glass tube of the gas generator. Air from the flow controller-solenoid valve-vacuum pump-formaldehyde gas generator chamber-heating cracker-output gas with formaldehyde.
Product composition

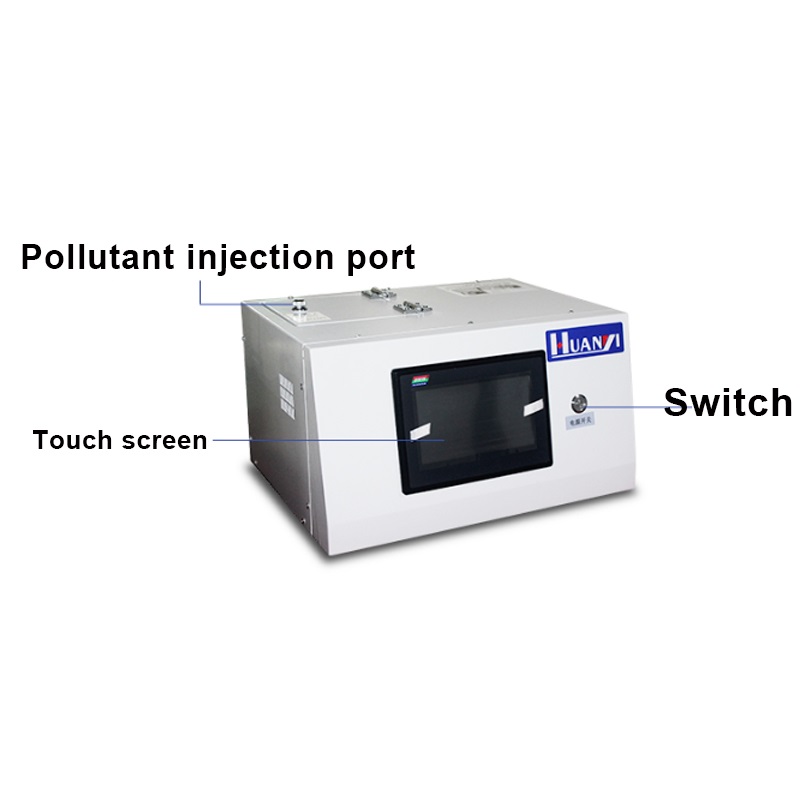

Formaldehyde generator consists of chassis, formaldehyde gas generator cavity, formaldehyde cracking device, vacuum pump, flow controller, touch display screen, CPU board and power board and other major components.

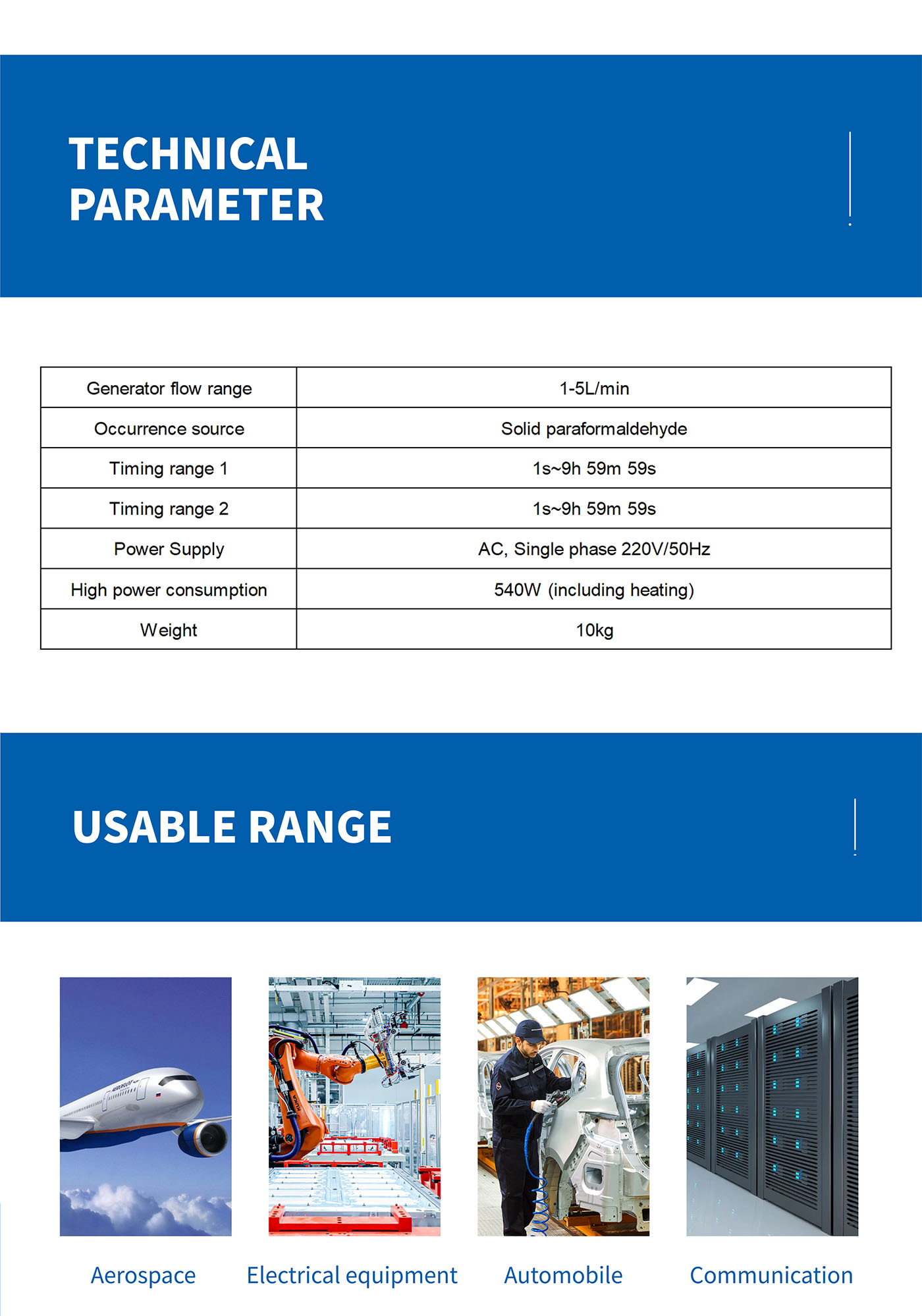

Technical parameters
|
Generator flow range |
1-5L/min |
|
Occurrence source |
Solid paraformaldehyde |
|
Timing range 1 |
1s~9h 59m 59s |
|
Timing range 2 |
1s~9h 59m 59s |
|
Power Supply |
AC, Single phase 220V/50Hz |
|
High power consumption |
540W (including heating) |
|
Weight |
10kg |
