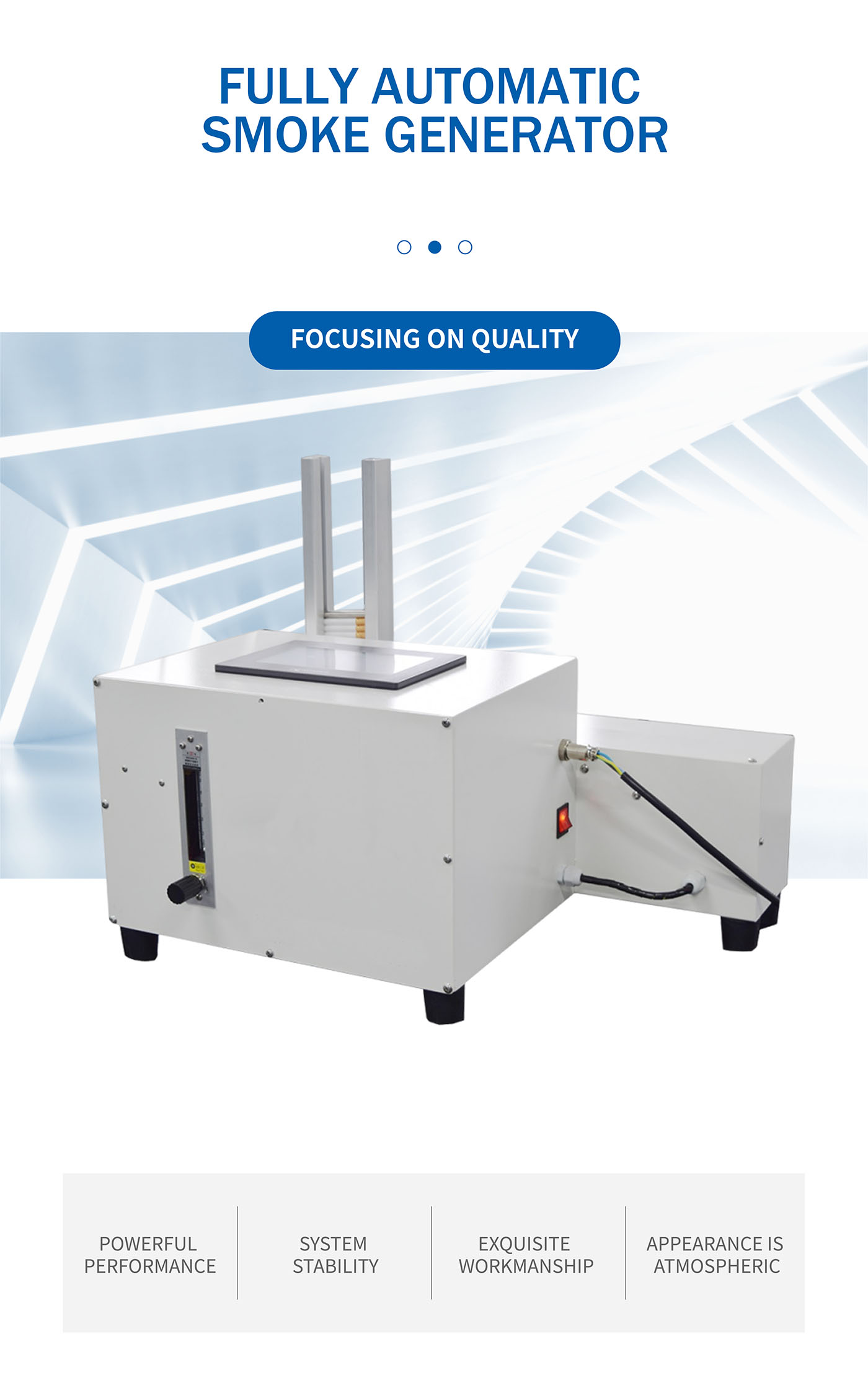

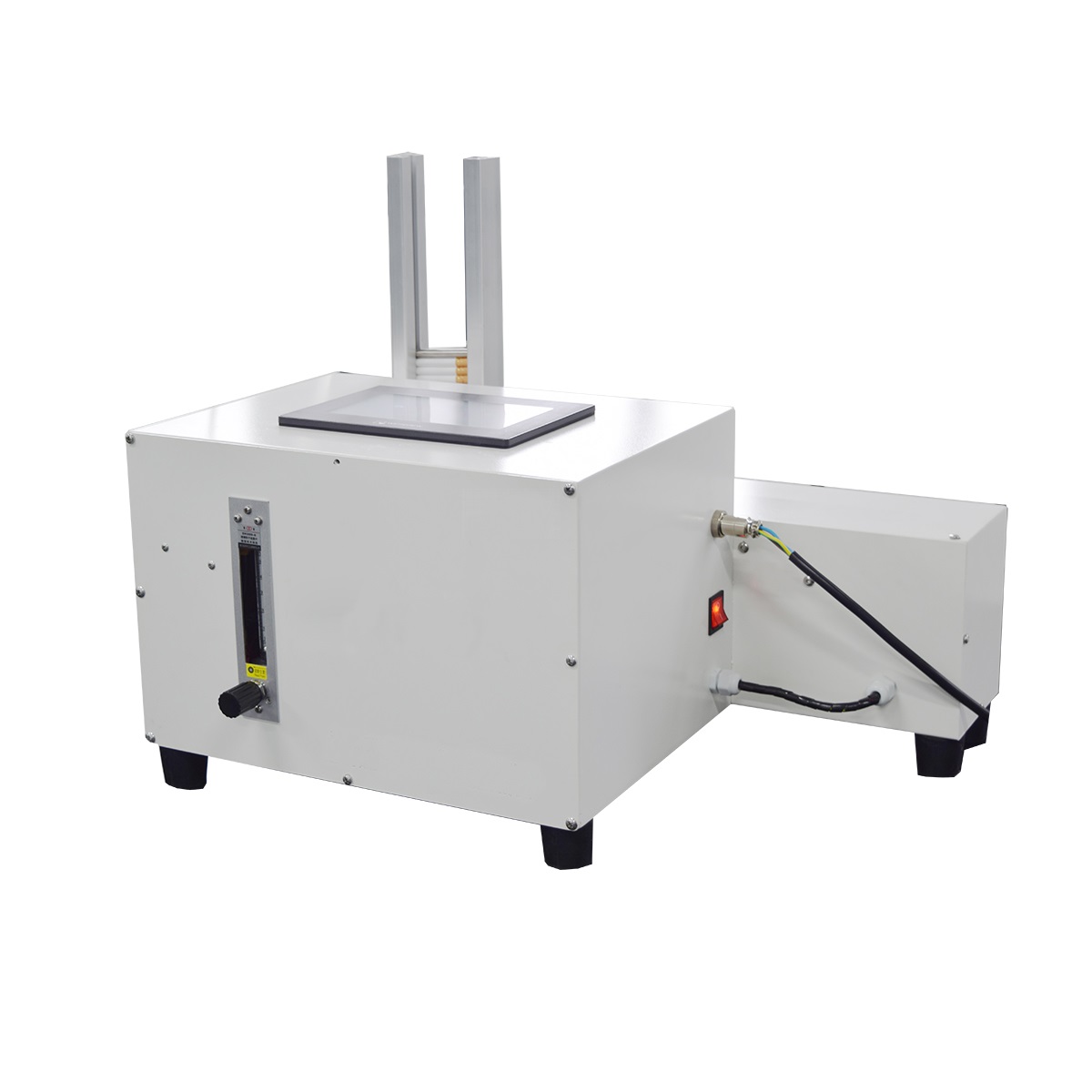

Fully Automatic Smoke Generator
Product Description
According to the national standard GB/T 18801-2015 requirements, air purifier in the standard cabin for PM2.5 particulate matter CADR (clean air volume) and CCM (cumulative purification capacity) purification performance test, you need to be in accordance with a certain speed particulate matter concentration, in the generator compartment occurs a certain concentration of PM2.5 particulate pollutants.

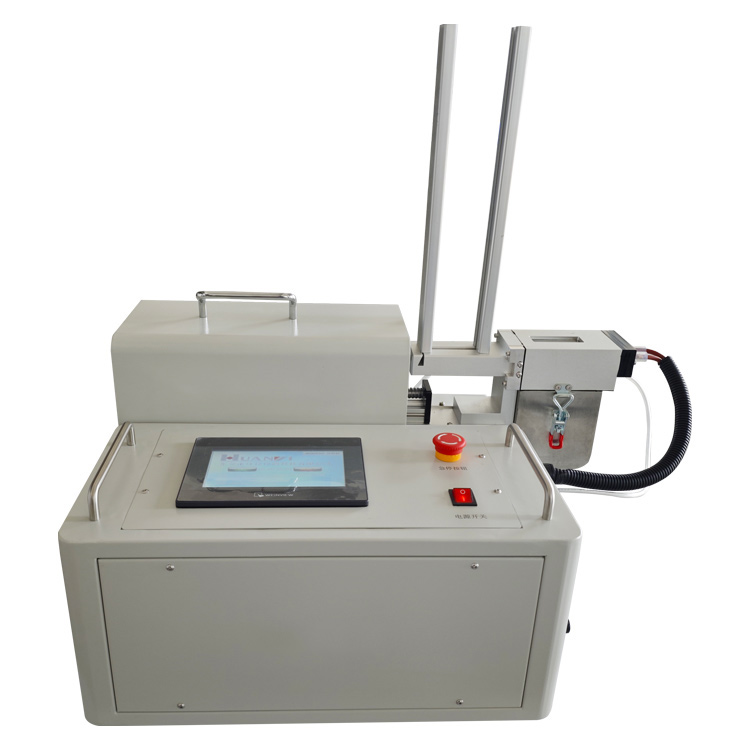

This device is a fully automatic cigarette smoke and particulate PM2.5 generator composed by plc human-machine interface and servo motor. The specification of concentration and total amount of particulate matter is achieved by controlling the number of standard cigarettes and the flow rate of carrier gas. Combustion is used to quantitatively generate a simulated source of particulate matter pollution.

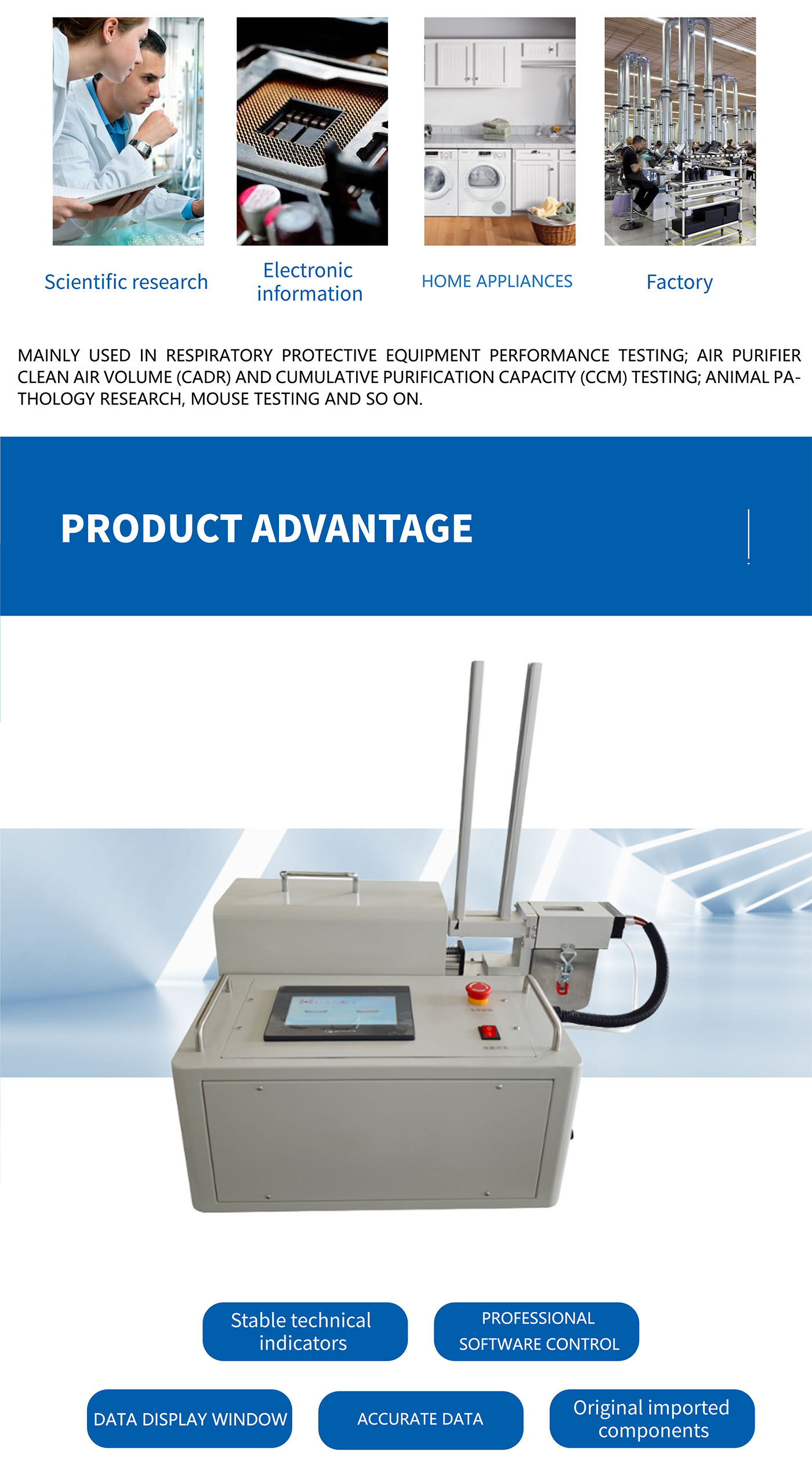

It has an unlimited number of lit cigarette roots, is easy to maintain and is versatile.Mainly used in respiratory protective equipment performance testing; air purifier clean air volume (CADR) and cumulative purification capacity (CCM) testing; animal pathology research, mouse testing and so on.particle size, single-speed mist flow rate 0~30L adjustable, and the highest concentration is 80 micrograms/L@100L.Product Advantages
(1) Lightweight equipment, easy to store and transport.
(2) Continuous smoke feeding can be realized

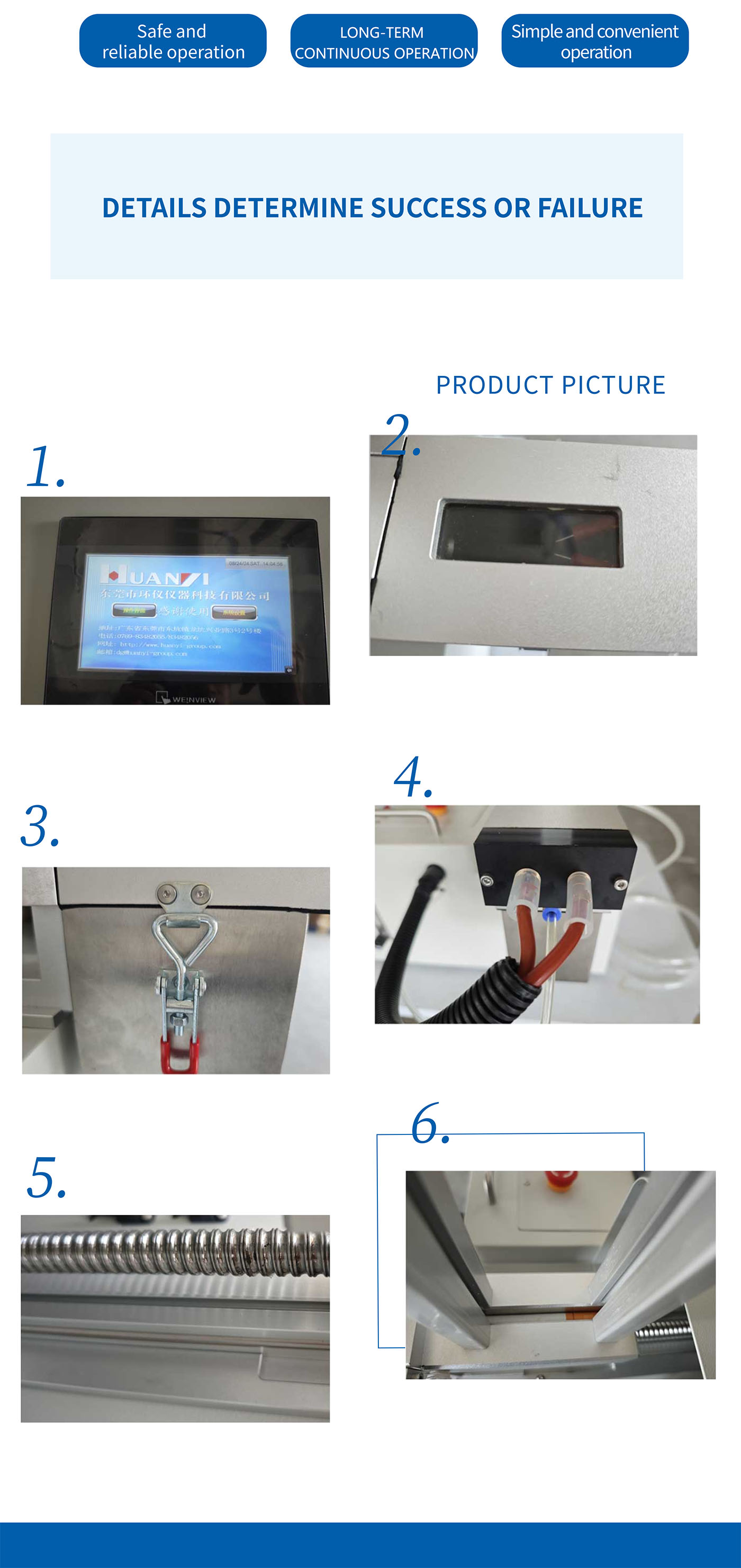

(3) Mechanical motion control parts adopt one-piece precision engraving processing and fast-clamping combustion chamber design, which is convenient and fast for removing cigarette butts.
(4) Servo motor control ensures accurate and controllable positioning.
(5) Automatic motion detection, automatic alarm for cigarette jamming.
(6) PLC control is integrated, providing a wide range of parameter settings and adjustments.
(7) Full-automatic control can realize unattended operation.
(2) Continuous smoke feeding can be realized
(3) Mechanical motion control parts adopt one-piece precision engraving processing and fast-clamping combustion chamber design, which is convenient and fast for removing cigarette butts.
(4) Servo motor control ensures accurate and controllable positioning.
(5) Automatic motion detection, automatic alarm for cigarette jamming.
(6) PLC control is integrated, providing a wide range of parameter settings and adjustments.
(7) Full-automatic control can realize unattended operation.

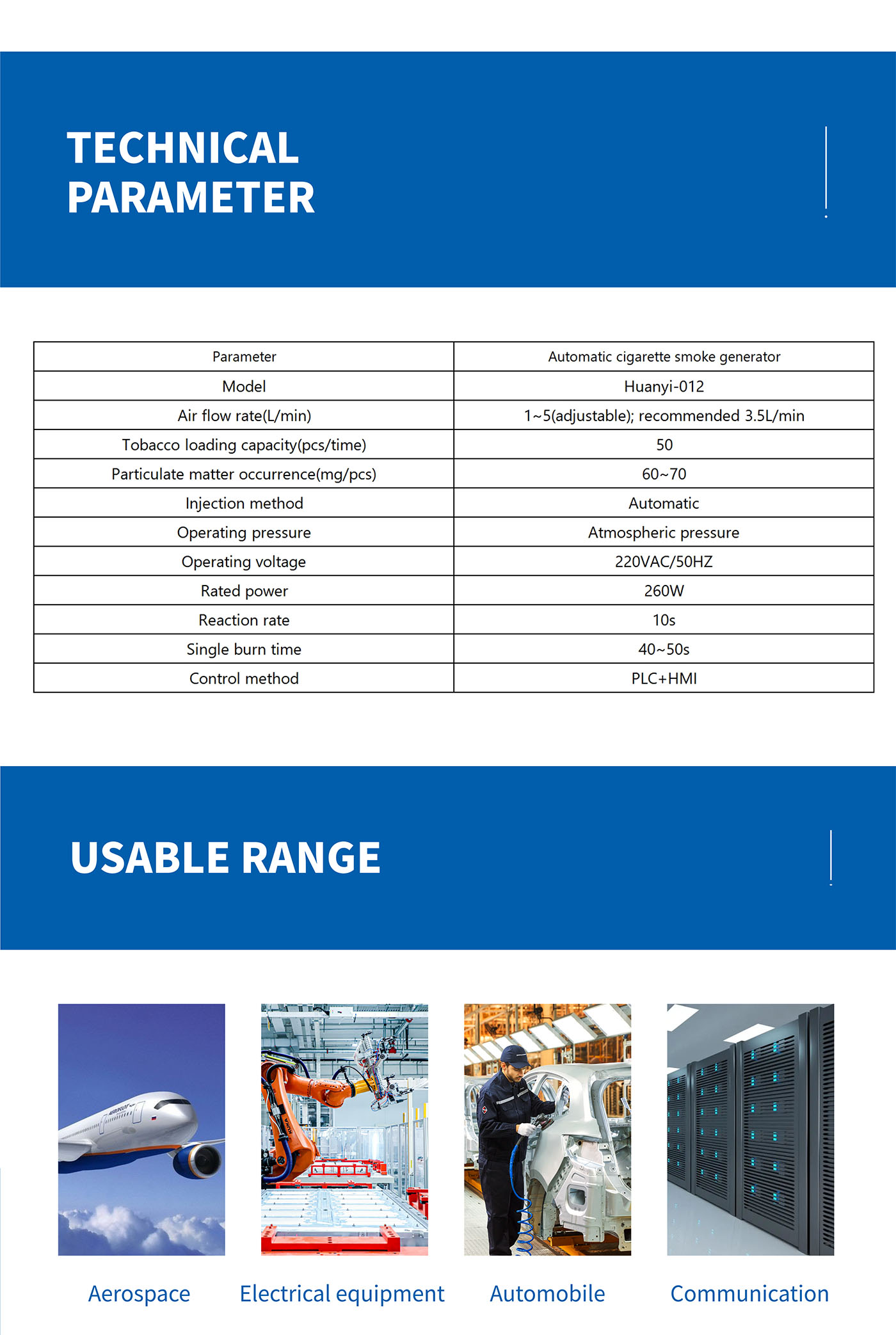

Technical parameters
|
Parameter |
Automatic cigarette smoke generator |
|
Model |
Huanyi-012 |
|
Air flow rate(L/min) |
1~5(adjustable); recommended 3.5L/min |
|
Tobacco loading capacity(pcs/time) |
50 |
|
Particulate matter occurrence(mg/pcs) |
60~70 |
|
Injection method |
Automatic |
|
Operating pressure |
Atmospheric pressure |
|
Operating voltage |
220VAC/50HZ |
|
Rated power |
260W |
|
Reaction rate |
10s |
|
Single burn time |
40~50s |
|
Control method |
PLC+HMI |
