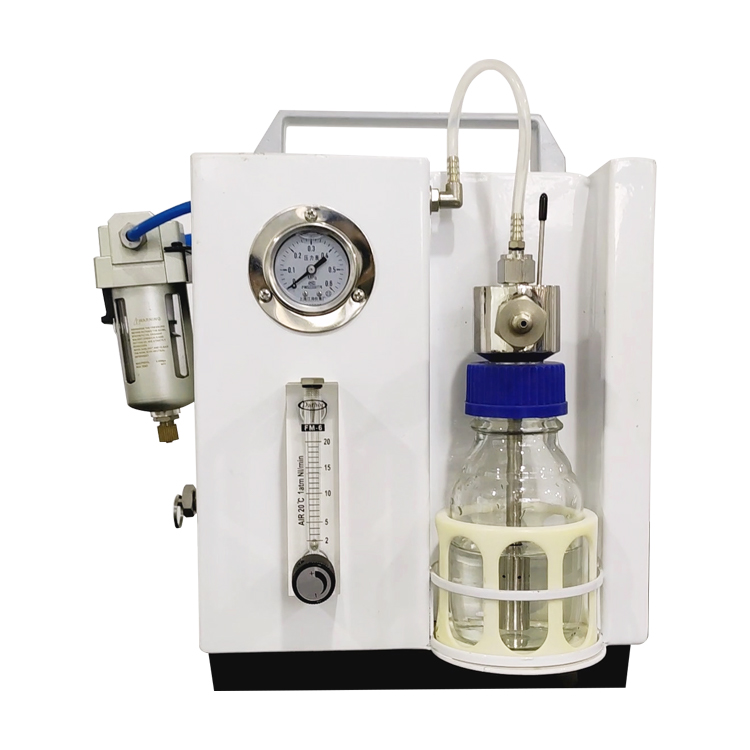

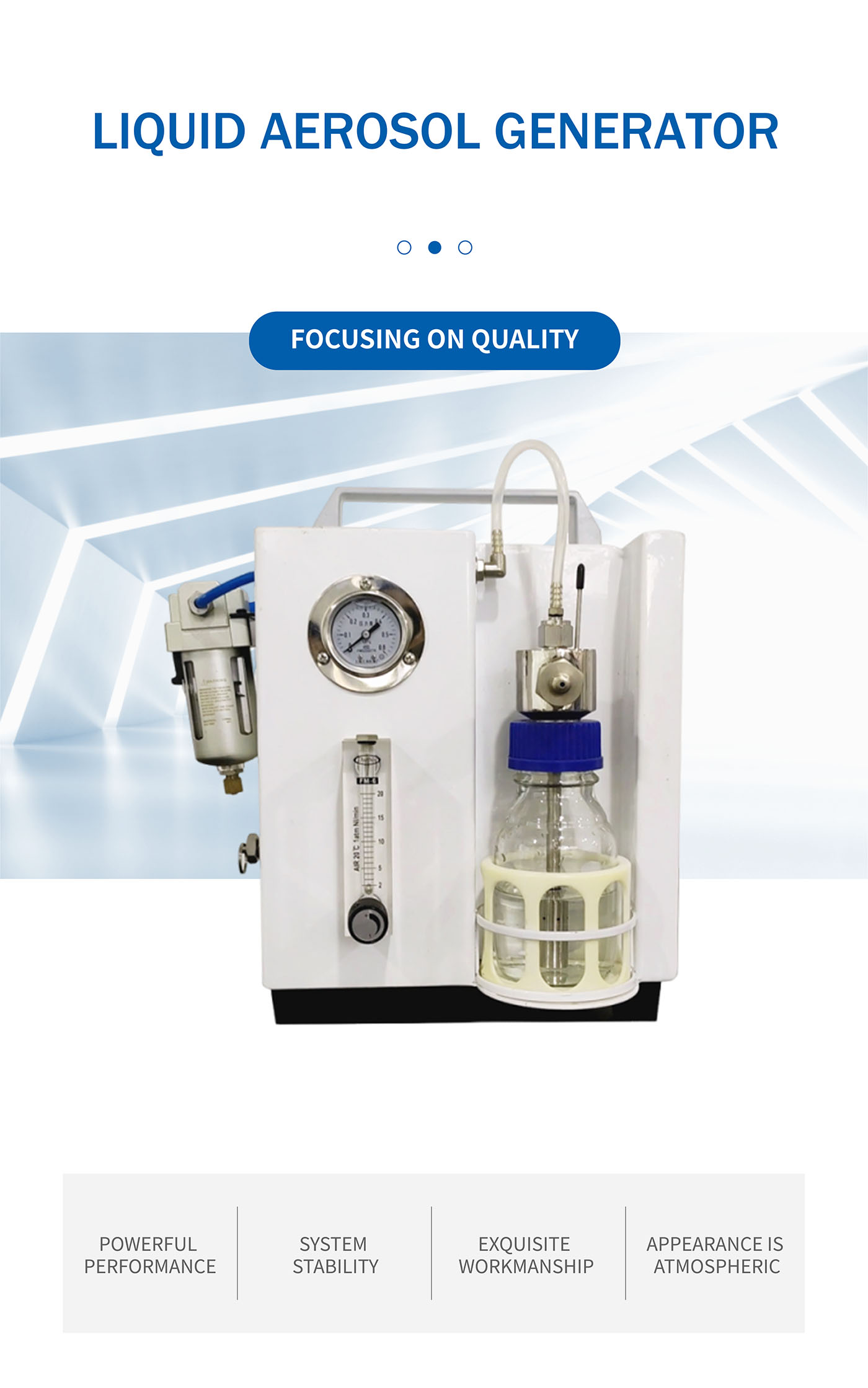

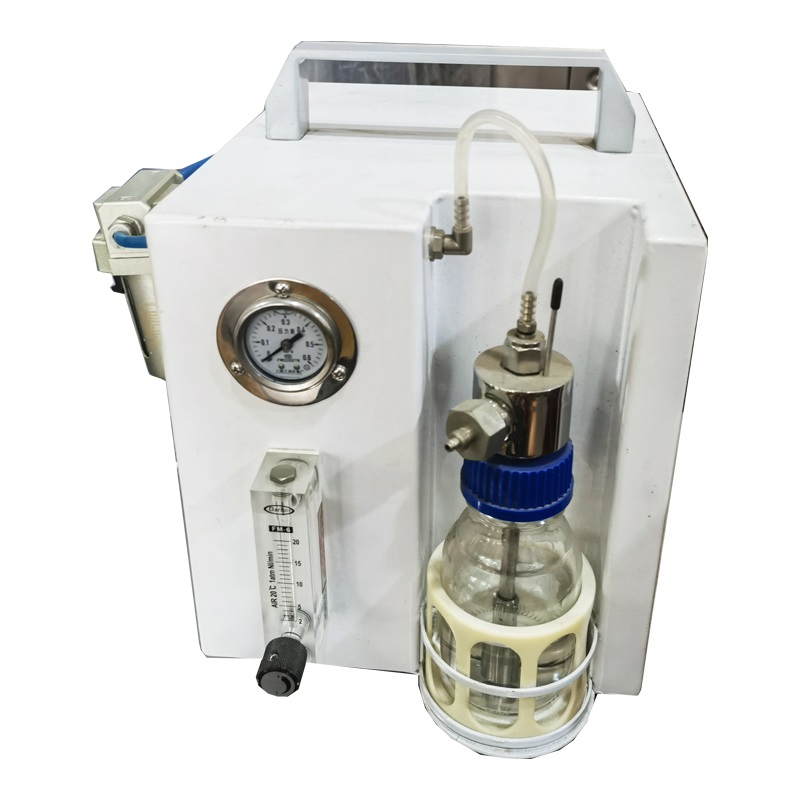

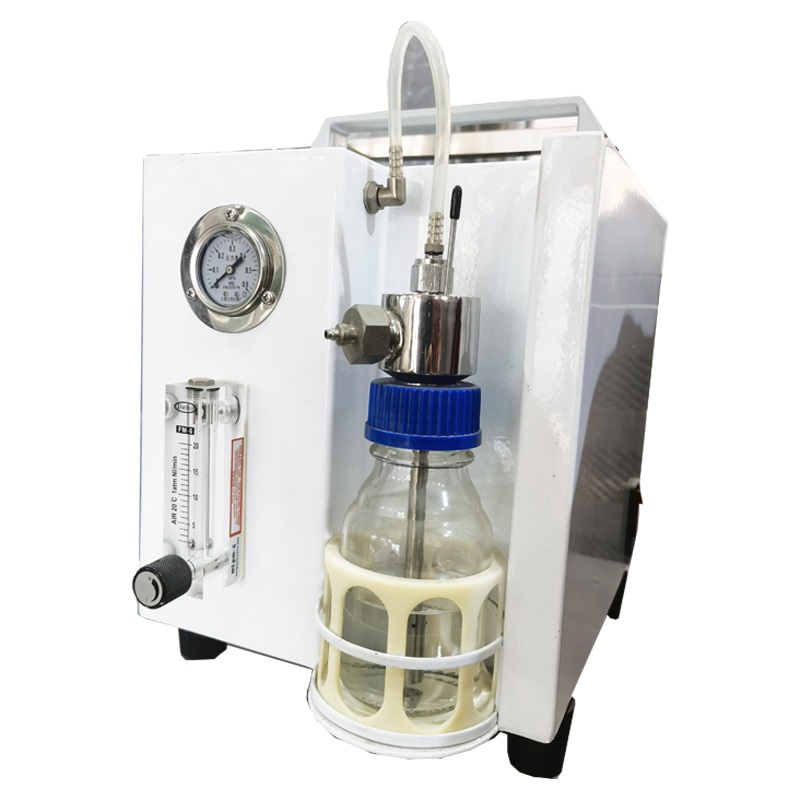

Liquid Aerosol Generator
Description
The aerosol generator is a liquid type aerosol generator, which can continuously and stably generate aerosol aerosol from the solution, and the concentration of the aerosol can be adjusted.
The sample bottle of the aerosol generator is made of high borosilicate glass with a specially designed nozzle.
The aerosol generator has a built-in micro air compressor. The air enters the nozzle of the sample bottle, and the aerosol aerosol isgenerated by the shear force between the high-speed airflow and the liquid. Through inertial collision, the large particle size particles are returned to the container, and the small particle size aerosol is output.The particle size distribution of the aerosol is mainly within 0.2-3un.nd.
Appliaction
1. Test and filter efficiency HEPAULPA
2. On-site inspection of filters and clean rooms
3. Generate salt aerosols
4. Generate PSL balls
5. Flow field tracing
6. Drug atomization and inhalation experiments
7. Atomization of bacteria and virus solutions and animal infection experiments
2. On-site inspection of filters and clean rooms
3. Generate salt aerosols
4. Generate PSL balls
5. Flow field tracing
6. Drug atomization and inhalation experiments
7. Atomization of bacteria and virus solutions and animal infection experiments

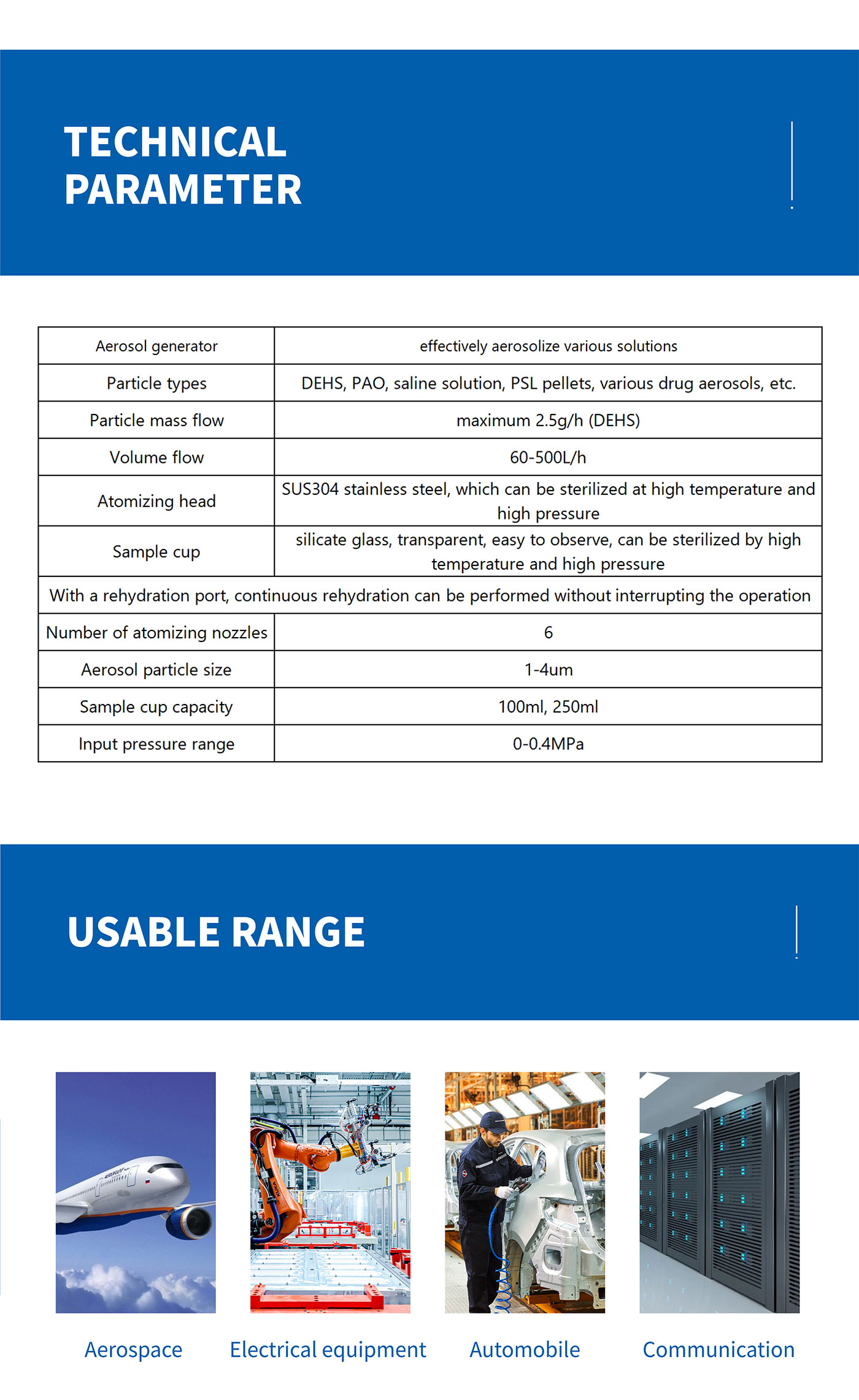

Technical parameters
|
Aerosol generator |
effectively aerosolize various solutions |
|
Particle types |
DEHS, PAO, saline solution, PSL pellets, various drug aerosols, etc. |
|
Particle mass flow |
maximum 2.5g/h (DEHS) |
|
Volume flow |
60-500L/h |
|
Atomizing head |
SUS304 stainless steel, which can be sterilized at high temperature and high pressure |
|
Sample cup |
silicate glass, transparent, easy to observe, can be sterilized by high temperature and high pressure |
|
With a rehydration port, continuous rehydration can be performed without interrupting the operation |
|
|
Number of atomizing nozzles |
6 |
|
Aerosol particle size |
1-4um |
|
Sample cup capacity |
100ml, 250ml |
|
Input pressure range |
0-0.4MPa |
