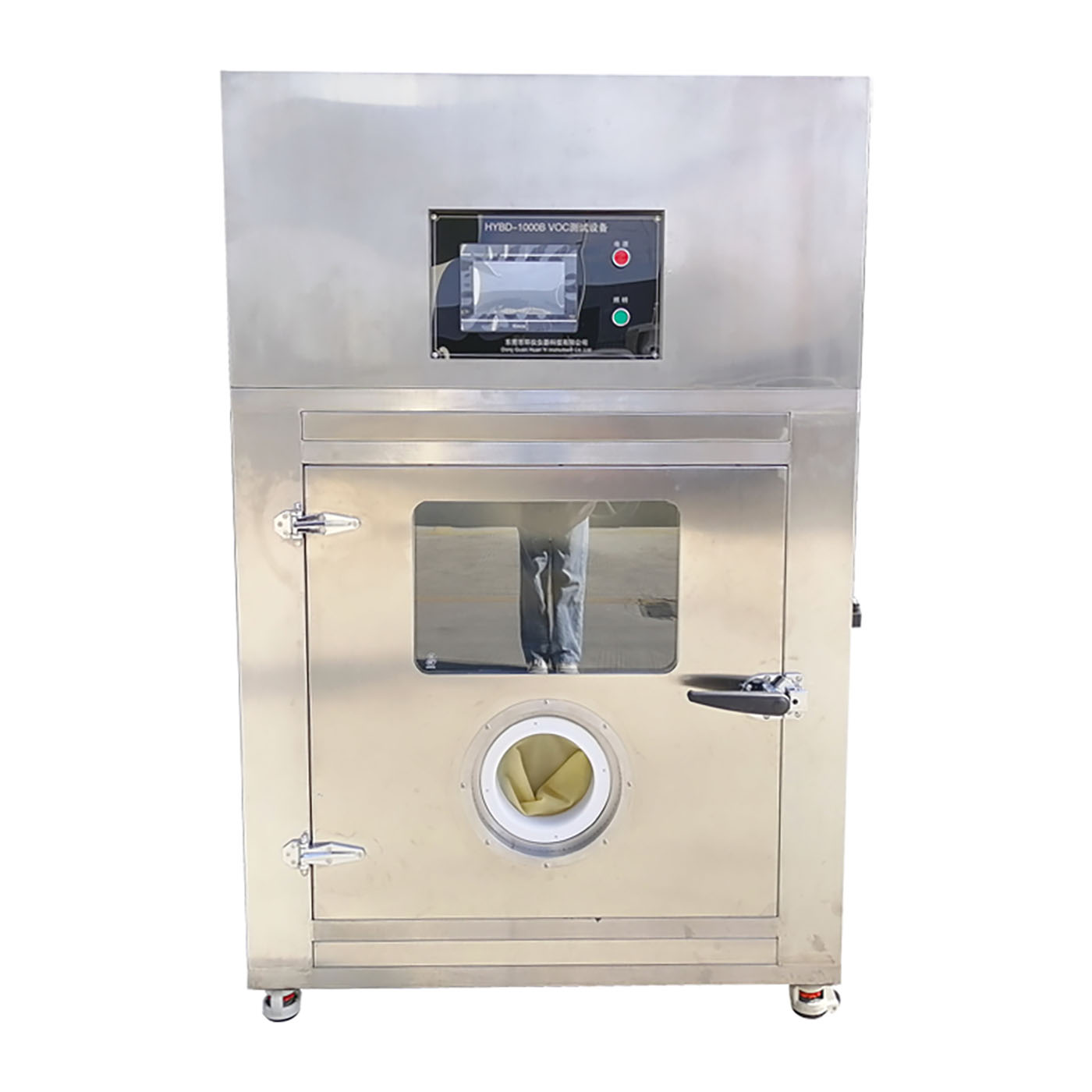

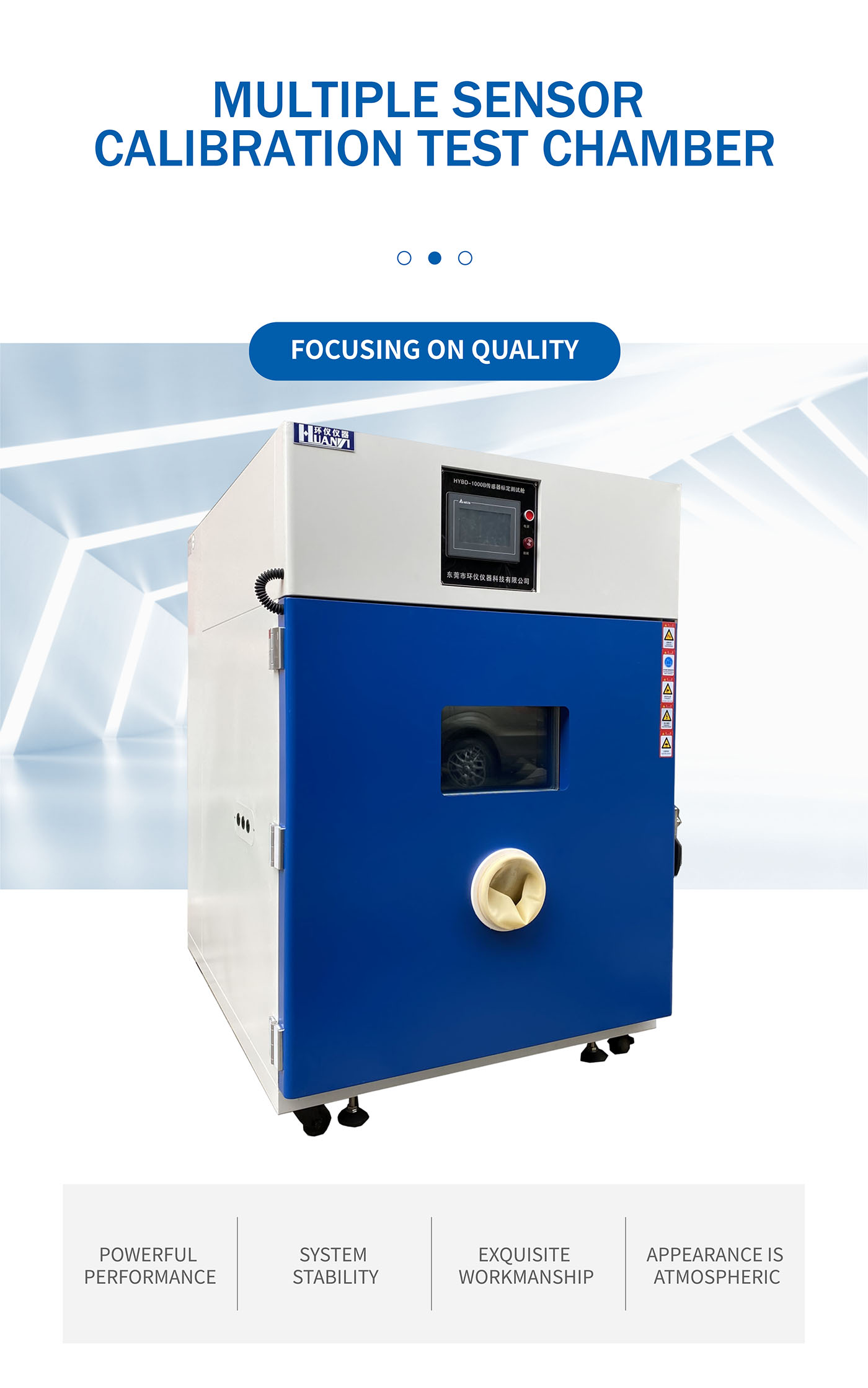

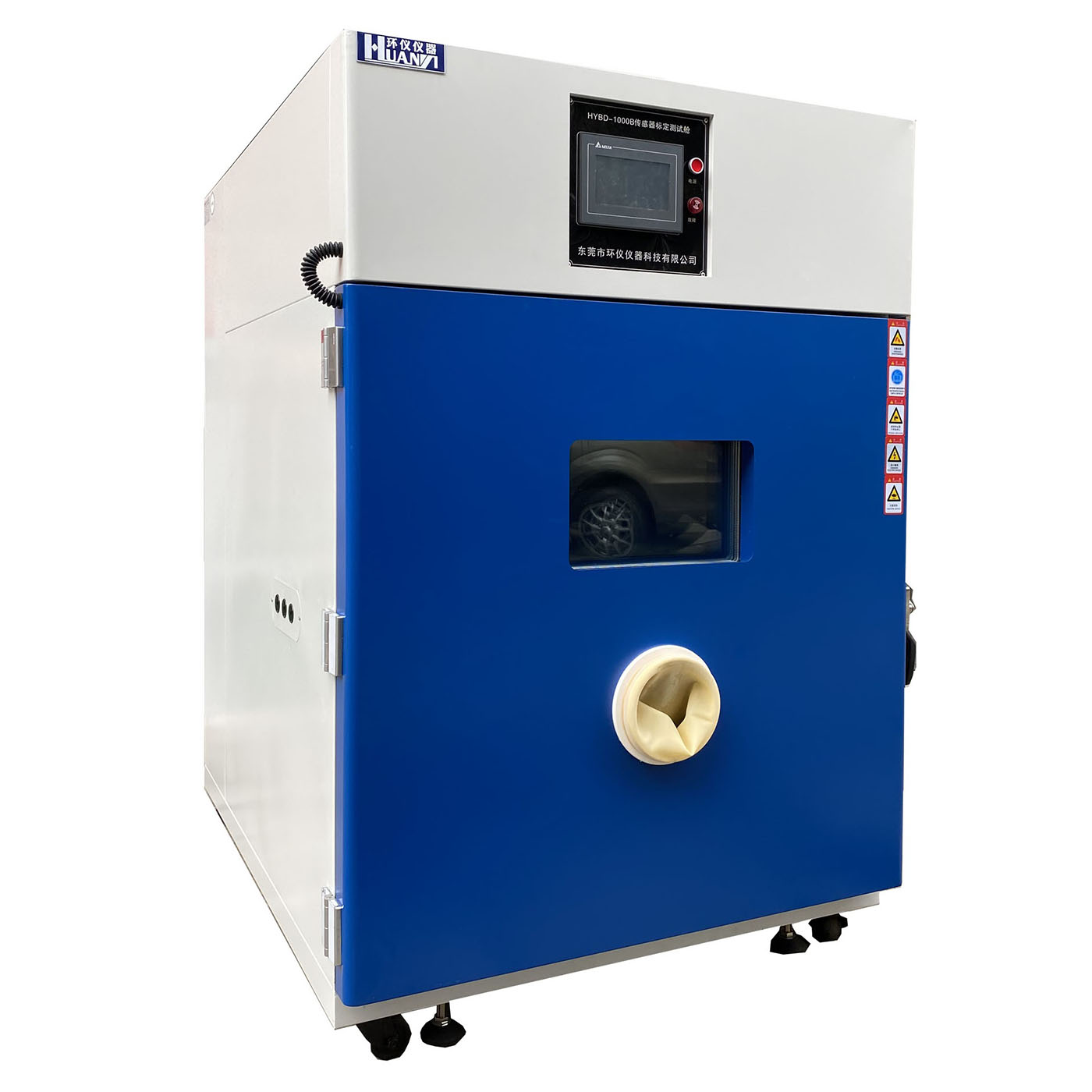

Multiple sensor calibration test chamber
Product Description
Meet the standards

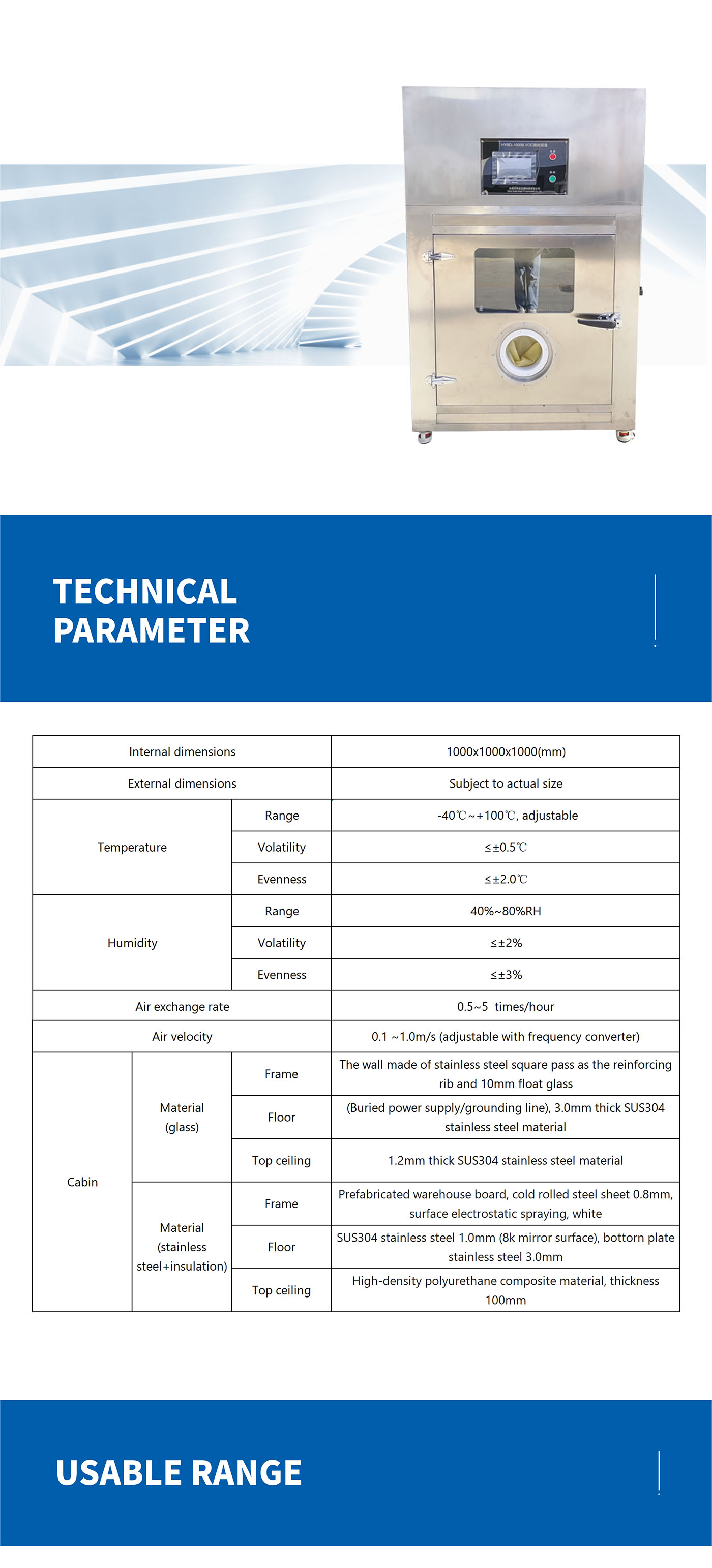

Technical parameters
|
Internal dimensions |
1000x1000x1000(mm) |
||
|
External dimensions |
Subject to actual size |
||
|
Temperature |
Range |
-40℃~+100℃, adjustable |
|
|
Volatility |
≤±0.5℃ |
||
|
Evenness |
≤±2.0℃ |
||
|
Humidity |
Range |
40%~80%RH |
|
|
Volatility |
≤±2% |
||
|
Evenness |
≤±3% |
||
|
Air exchange rate |
0.5~5 times/hour |
||
|
Air velocity |
0.1 ~1.0m/s (adjustable with frequency converter) |
||
|
Cabin |
Material (glass) |
Frame |
The wall made of stainless steel square pass as the reinforcing rib and 10mm float glass |
|
Floor |
(Buried power supply/grounding line), 3.0mm thick SUS304 stainless steel material |
||
|
Top ceiling |
1.2mm thick SUS304 stainless steel material |
||
|
Material (stainless steel+insulation) |
Frame |
Prefabricated warehouse board, cold rolled steel sheet 0.8mm, surface electrostatic spraying, white |
|
|
Floor |
SUS304 stainless steel 1.0mm (8k mirror surface), bottorn plate stainless steel 3.0mm |
||
|
Top ceiling |
High-density polyurethane composite material, thickness 100mm |
||
