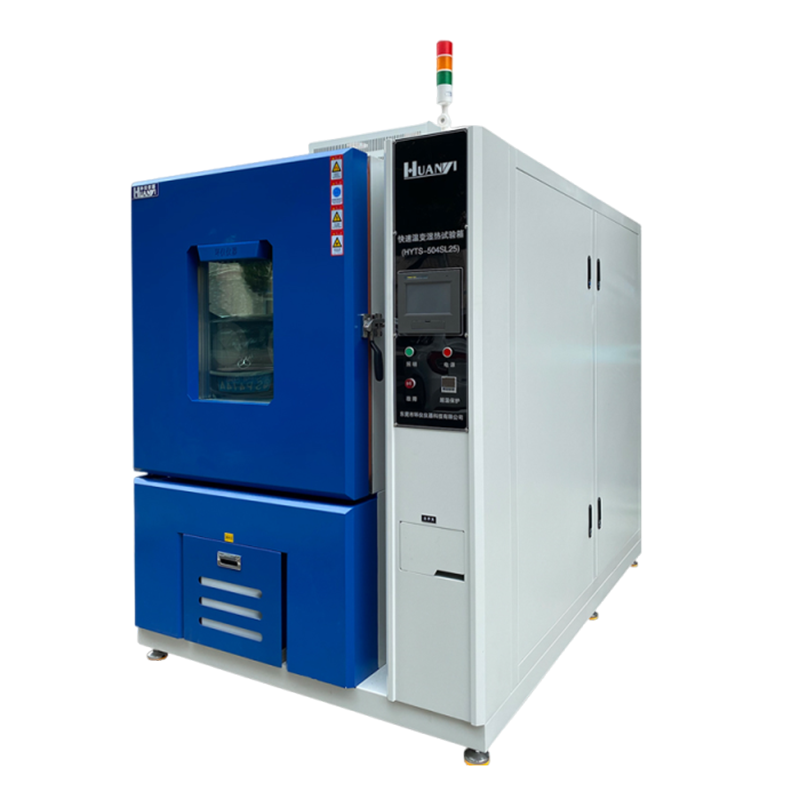

The Purpose of Rapid Temperature Change Test Chamber

Rapid Temperature Swing Test Chamber: Suitable for cold-resistance testing of electrical and electronic products and components, as well as adaptability testing under rapid or gradual temperature changes, making it particularly well-suited for environmental stress screening (ESS) testing of electrical and electronic products.
Rapid temperature swing Test Chambers are primarily designed for adaptability testing of electrical and electronic products and other raw materials subjected to rapid fluctuations in high and low temperatures during storage, transportation, and use.

Rapid Temperature Swing Test Chamber Introduction:
1. Rapid temperature swing test chambers, also known as temperature (humidity) rapid change test chambers, are suitable for safety performance testing of electronic components under rapid temperature fluctuations. They provide reliability testing, product screening, and other testing services, while improving product reliability and ensuring quality control.

2. The test chamber's heating and cooling rates are adjustable (maximum 5°C/min, 10°C/min, 15°C/min, 20°C/min, 30°C/min).
3. The test chamber has a humidity control function.

4. The test chamber has both linear and nonlinear discrimination.
5. Reference standards for rapid temperature change test chambers: This product complies with IEC61215 standards: GB2423.1-2001 Test A "Low-temperature Test Method", GB2423.2-2001 Test B "High-temperature Test Method", GB 2423.3-93 Test Ca "Steady-state Humidity Test Method", GB 2423.4-93 Test Db "Cyclic Humidity Test Method", and other national standards, as well as GB 10592-89 "Technical Requirements for High and Low-Temperature Test Chambers". This product is rigorously designed and manufactured to perform various high- and low-temperature cyclic humidity and heat tests.

The purpose of a rapid temperature change test chamber is:
The rapid temperature change test chamber is primarily used to conduct environmental simulation tests on the physical and other related properties of products under low and high temperature conditions, in accordance with national standards or user-defined requirements. The test results are used to determine product performance indicators and whether they meet the requirements for product design, improvement, qualification, and factory inspection.
The rapid temperature change test chamber is primarily composed of a chamber, refrigeration system, heating system, air circulation system, and control system. The outer shell is constructed of cold-rolled steel plate (high-quality stainless steel is optional), and the inner liner is constructed of high-quality stainless steel. A large observation window in the center of the chamber door, equipped with an observation light, allows the user to clearly observe the condition of the specimen, creating an aesthetically pleasing overall appearance. The insulation layer of this test chamber is made of rigid polyurethane foam with a small amount of ultra-fine glass wool, so it must possess high strength and excellent thermal insulation properties.

Rapid Temperature Swing Test Chamber: The main temperature control instrument uses an intelligent digital temperature and humidity control instrument with a user-friendly design, making it easy to learn and use. Instruments of different functional levels must be compatible with each other. The input utilizes a digital calibration system and built-in nonlinearity correction tables for common thermocouples and RTDs to ensure accurate and stable measurements. It also features AI-powered adjustment, 0.2-level accuracy, and multiple alarm modes. The cooling system utilizes a fully enclosed imported compressor unit with either a mechanical single-stage refrigeration or overlapping low-temperature circuit system for fully automatic control and coordinated safety protection. The heating system utilizes stainless steel finned heating tubes.

The Rapid Temperature Swing Humidity Test Chamber is a temperature and humidity testing device suitable for aerospace products, information and electronic instruments, electrical and electronic products, and various electronic components. It tests the performance of various products under rapid temperature swing conditions.
