Air Filter Test Machine
Sodium Chloride Generator
Description
Sodium chloride generators are mainly used in laboratories, scientific research institutions or industrial environments to produce stable sodium chloride aerosols for air filter testing, respiratory protection equipment testing, aerosol research, etc
The sodium chloride generator is designed to be durable, lightweight, small and compact. It only needs to be connected to clean compressed air to produce sub-micron suspended particles of various diameters. It contains an anti-static neutralizer, adjustable particle size, single-speed mist flow rate 0~30L adjustable, and the highest concentration is 80 micrograms/L@100L.Technical parameters
|

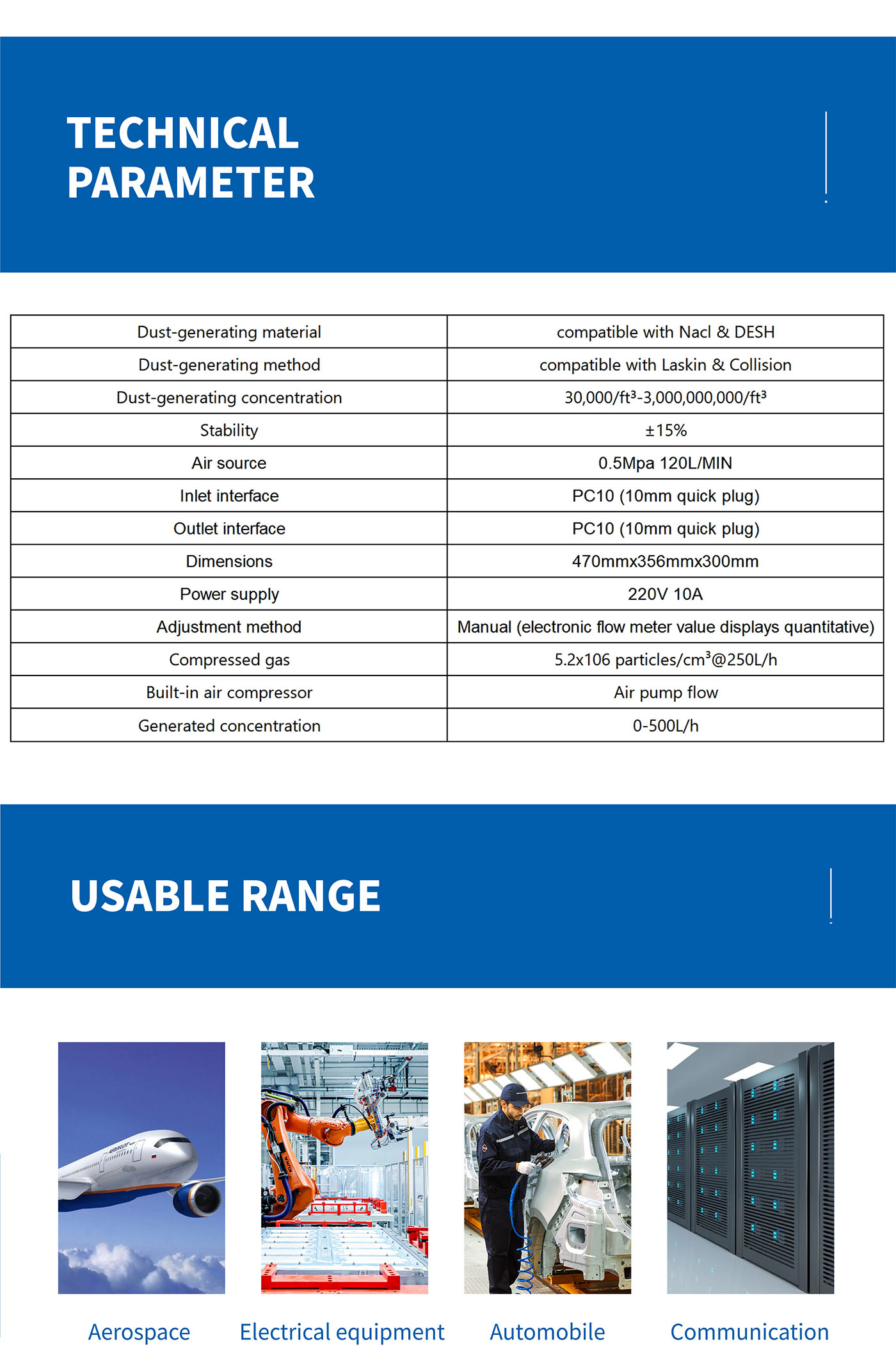

Dust-generating material |
compatible with Nacl & DESH |
|
Dust-generating method |
compatible with Laskin & Collision |
|
Dust-generating concentration |
30,000/ft³-3,000,000,000/ft³ |
|
Stability |
±15% |
|
Air source |
0.5Mpa 120L/MIN |
|
Inlet interface |
PC10 (10mm quick plug) |
|
Outlet interface |
PC10 (10mm quick plug) |
|
Dimensions |
470mmx356mmx300mm |
|
Power supply |
220V 10A |
|
Adjustment method |
Manual (electronic flow meter value displays quantitative) |
|
Compressed gas |
5.2x106 particles/cm³@250L/h |
|
Built-in air compressor |
Air pump flow |
|
Generated concentration |
0-500L/h |
